KNOB NOT SELECTING PROGRAM
This is what i did
There are a few types , the type i am doing needs to have the console removed to get to the knob . On some of the other models the knob just pulls off . If you need some advise then drop me an email.
I ALWAYS UNPLUG FROM MAINS.
Remove the two screws from the top.

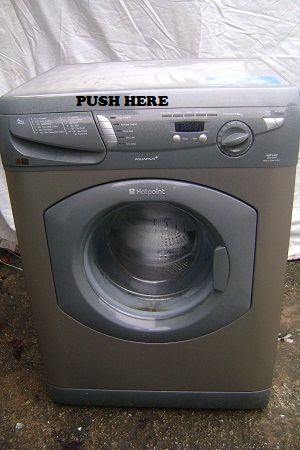

Push the top from the front towards the rear of the machine and when it moves back lift it up.Remove the soap drawer by pulling the drawer out untill it stops then give it an extra pull to get it pass the stop then the drawer slides away from the machine.

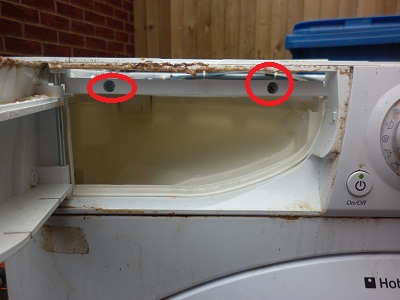

Remove the two screws on top of the console panel and the two screws where the soap drawer fits.Remove the console pcb connector.

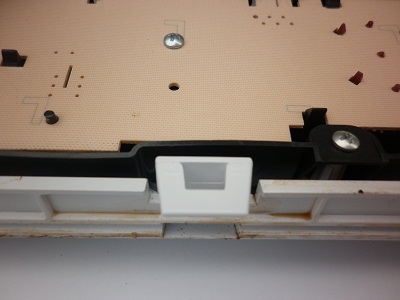

The console clips on using these clips.The console can be removed by sprising them gently open.

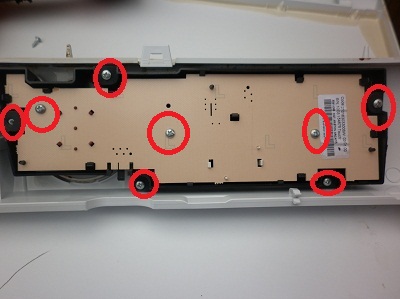

Remove the screws as shown in the picture.
The top pcb can now be removed.

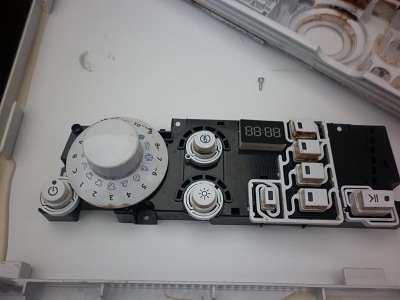

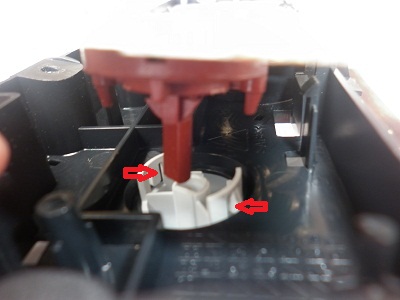

The pcb can be removed to gain access to the knob which is held in by clips ( arrowed ).

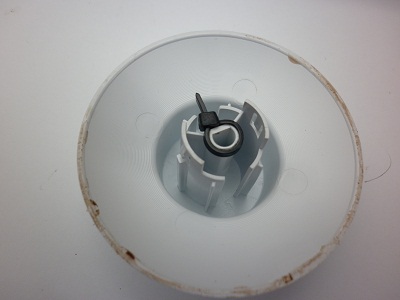

Tie a tie wrap around the knob shaft ,where it is broke, the knob will be ok aslong as it hasn`t gone too far.If a new knob is required then get a quote ( for a new knob ) off the main agent as they could be cheaper than local dealers.

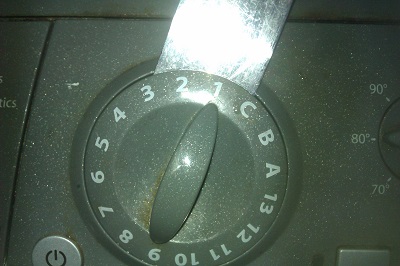

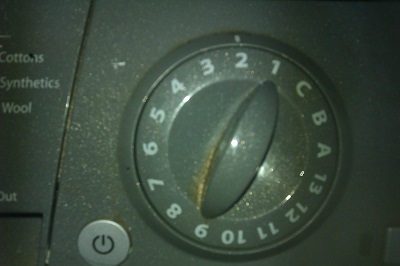

If it`s this type of knob then get a flat tool behind it and prise it off .
Like this.

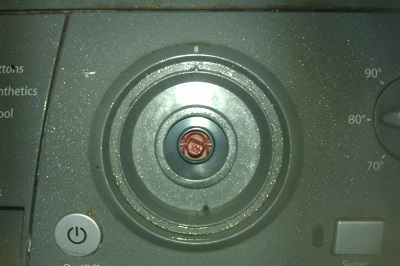

Now this is what it looks like.

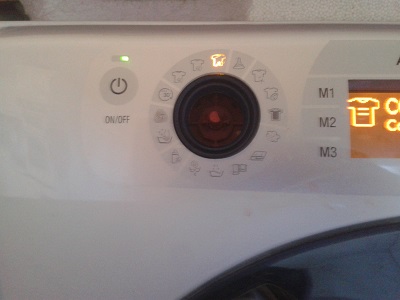

The aqualtis just pulls off aswell.
