Not much can be done with these ,when a new module is purchased it is blank,the options are to get the manufacturer to do the repair for a fixed price ( about £105 as of July 2012 depending on age ).Or do it yourself and purchase a module at cost of about £100 ,and a smart card reader £100 and a program card for your model of machine about £20 total cost about £220 ( if the manufacturer does it they will fit any parts needed with a guarantee).

UNPLUG FROM MAINS.

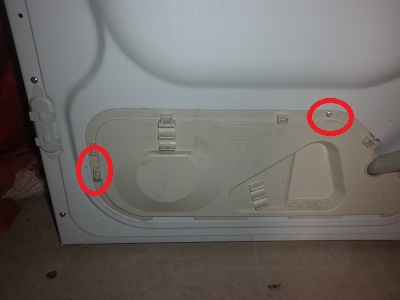

Remove the rear access panel.

.

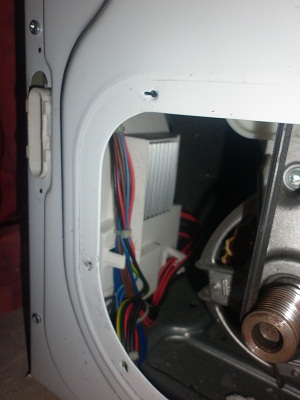

On the right is the module and on the left is the module access cover ,it pulls out.

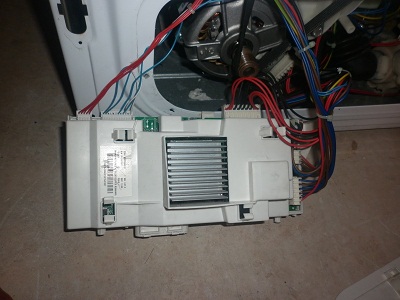

Remove the screws and loosen the wiring,from the clips ,and the module can be moved to the outside of the machine,if a new module is to be fitted then remove the wires one by one and put on and pull off the new board a couple of times to make sure a good connection is established.Then it will have to be programmed unless a good second hand board, off a good machine (it must be the same machine), is to be fitted.

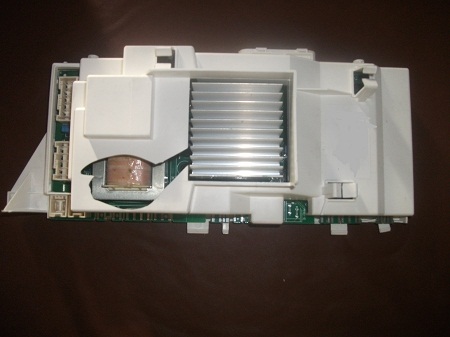

This is a 3 phase module EVOII.The motor has no brushes.Part number c00254298.

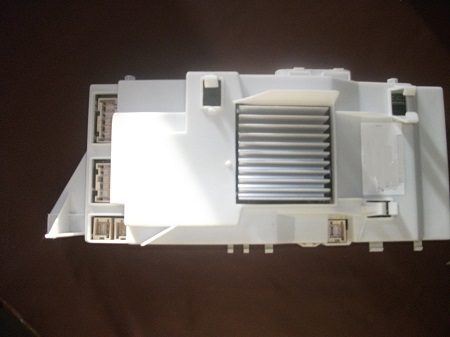

Another 3 phase module EVOII.Part number c00254409.

This is an ARCADIA module.Part number c00271242.

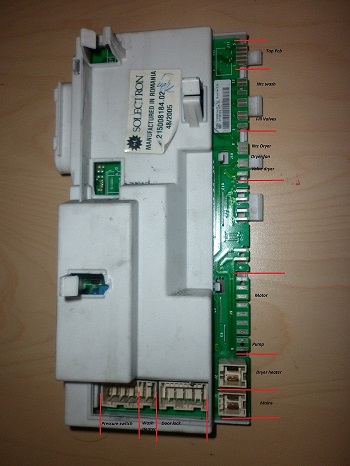

This is a very common washer dryer module EVOII.Part number c00254535.There is a nice big pic at the bottom with the wiring.If all the lights start flashing then the capacitor has failed(see below).

.

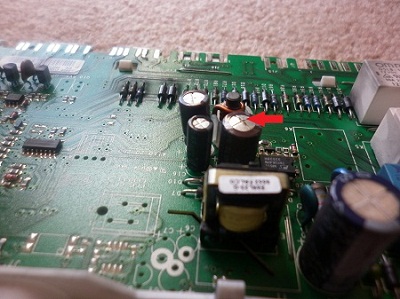

The capacitor fails,all the lights start flashing.If you look at he the photo then you can just see the top has been pushed outwards from the inside.This is the sign that it has failed.It is a 680µf 10v electrolytic capacitor.

C00254535.
